Braidwell Machine Co.

Number of carriers	8 to 96 & more
Bobbin dimensions	∅75mm x 150mm
Motor Power (As per model selection)	1.0 HP to 15 HP

Horngears with bearing for smooth operation.
Spring loaded carriers in two pieces.
Optional electric panel for speed variation from 0 rpm - 220 rpm & also available to get different picks per cm./inch.

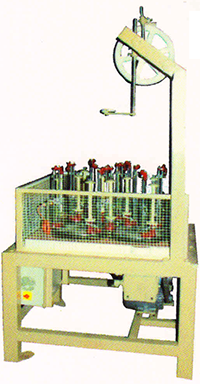

Machines for textile braiding of yarn, braiding long length, low pressure hoses & tubes.
Braid knotting tension of the carrier - 3.2 kgs to 13.0 kgs.

Number of carriers	12 to 96 & more
Bobbin dimensions	∅50mm x 150mm,∅70mm x 160mm
Motor Power (As per model selection)	1.0 HP to 20 HP

Horngears with bearing for smooth operation.
Spring loaded carriers in two pieces.
Optional electric panel for speed variation from 0 rpm - 220 rpm & also available to get different picks per cm./inch.
Double Deck option is also available.
AC frequency drive available for speed variation of the machines.
Braid knotting tension of the carrier - 3.2 kgs to 13.0 kgs.
