Yarn Braiding Machine

Number of carriers 08 to 96 & more
Bobbin dimensions ∅52mm x 160mm
∅60mm x 210mm
∅70mm x 225mm
  • Horngears with bearing for smooth operation.
  • Spring loaded carriers in two pieces.
  • Optional electric panel for speed variation from 0 rpm - 220 rpm & also available to get different picks per cm./inch.
  • Machines for textile braiding of yarn, braided ropes, tubes .
  • Braid knotting tension of the carrier - 1.0 kg to 3.5 kgs & more.

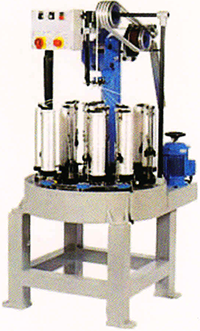

yarn-braiding-machine

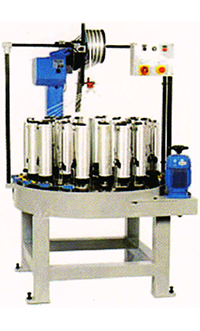

yarn-braiding-machine2
Number of carriers 12 to 96 & more
Bobbin dimensions ∅70mm x 225mm
Motor Power (As per model selection) 1.0 HP to 15 HP
  • Horngears with bearing for smooth operation.
  • Spring loaded carriers in two pieces.
  • Optional electric panel for speed variation from 0 rpm - 220 rpm & also available to get different picks per cm./inch.
  • Machines for textile braiding of yarn, braiding long length, low pressure hoses & tubes.
  • Braid knotting tension of the carrier - 2.5 kgs to 5.4 kgs & more.
Number of carriers 12 to 96 & more
Bobbin dimensions ∅90mm x 225mm,
∅90mm x 270mm
  • Horngears with bearing for smooth operation.
  • Spring loaded carriers in two pieces.
  • Optional electric panel for speed variation from 0 rpm - 220 rpm & also available to get different picks per cm./inch.
  • Machines are also in two track plates.
  • Braid knotting tension of the carrier - 3.6 kgs to 6.5 kgs.
yarn-braiding-machine3
